Selections of probes for scanning electrochemical system provide options for precise and clear results for all VersaSCAN techniques.

Highlights:

Probes for SECM, Soft-probe SECM, LEIS, SVET and SKP

Options available for various features in the sample

Accessories:

	224098 10 μm SECM PROBE SECM probe with 10 μm Platinum electrode for DC- SECM and AC-SECM Active electrode: 10 μm Platinum Insulating sheath: Glass Product Number: 224098
	224137 25 μm SECM PROBE Active electrode: 25 μm Platinum Insulating sheath: Glass Product Number: 224137

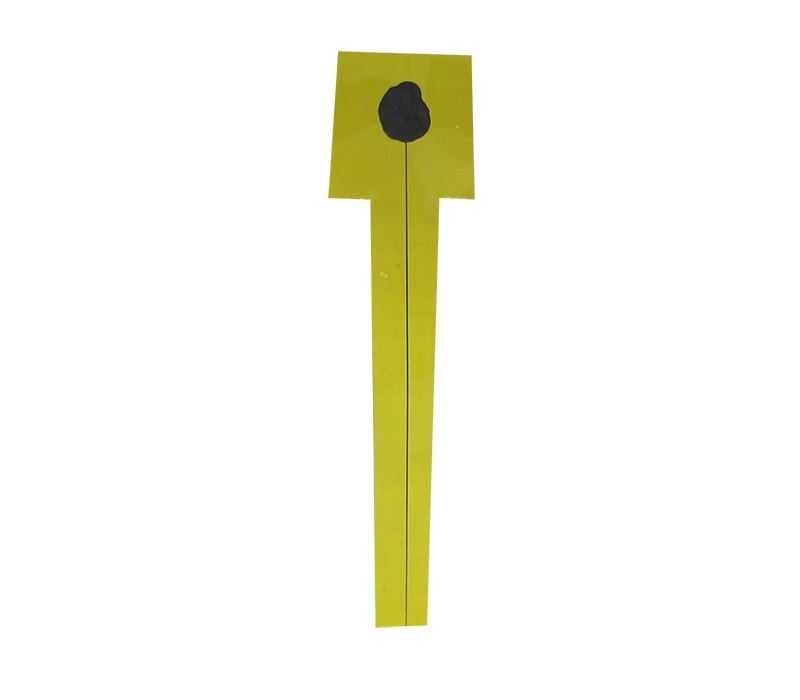

	1107001 Soft Probe Soft probe is a highly flexible SECM probe with fixed probe-to-sample distance for measurements with uneven surface Product Number: 1107001

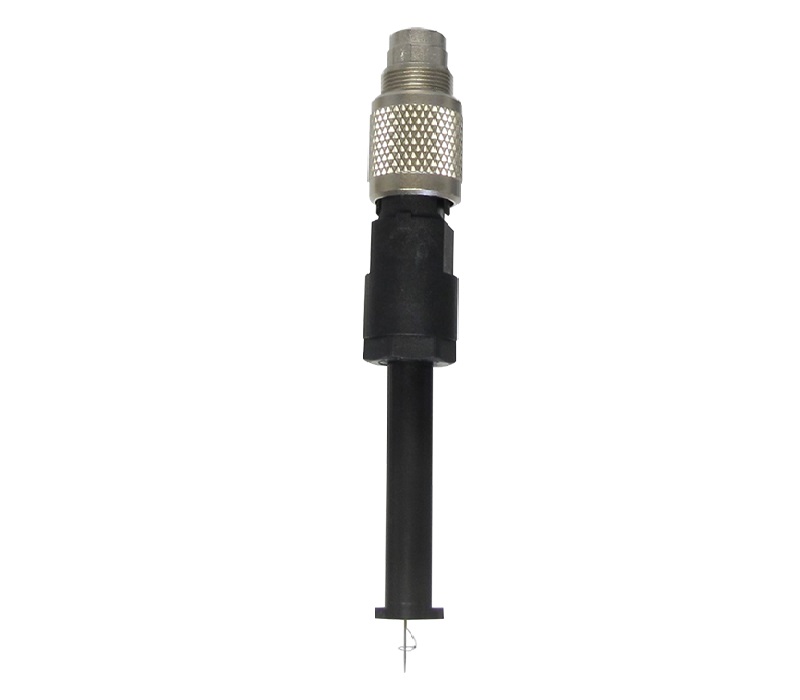

	224114 LEIS Probe LEIS probe is a potentiometric bi-electrode with a Pt-Ir tip and a fixed-distance Pt ring for measuring the local impedance of the sample of interest. Electrode Material Tip: Pt-Ir Ring: Pt. Electro Spacing: 3 mm Product Number: 224114

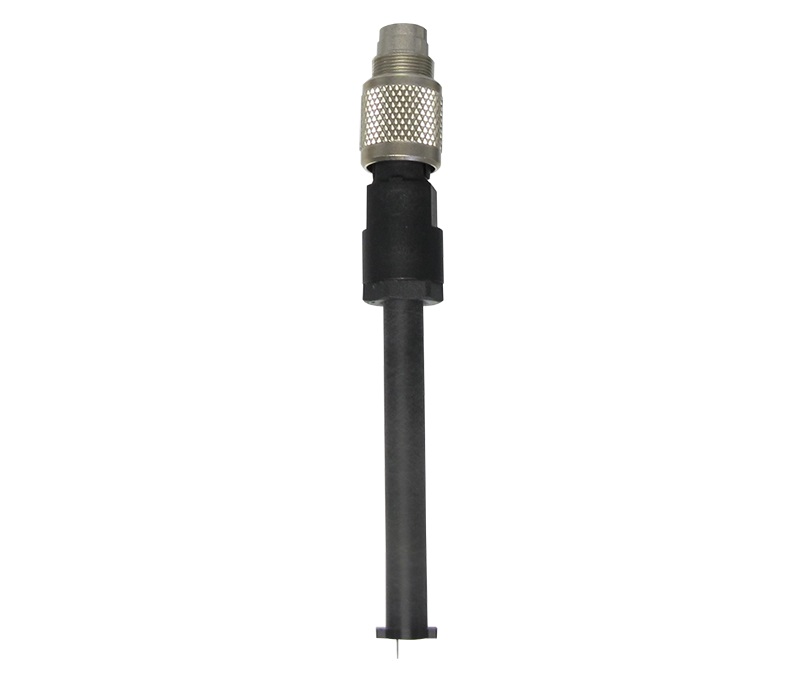

	224111 SVET Probe SVET probe has a single Pt-Ir tip to measure iR drop in the electrolyte above the sample surface Electrode Material: Pt-Ir Product Number: 224111
	224112 500 μm SKP PROBE SKP probe for measuring the relative work function difference between the probe and the sample Electrode Diameter: 500 µm Electrode Material: Tungsten (W) Product Number: 224112

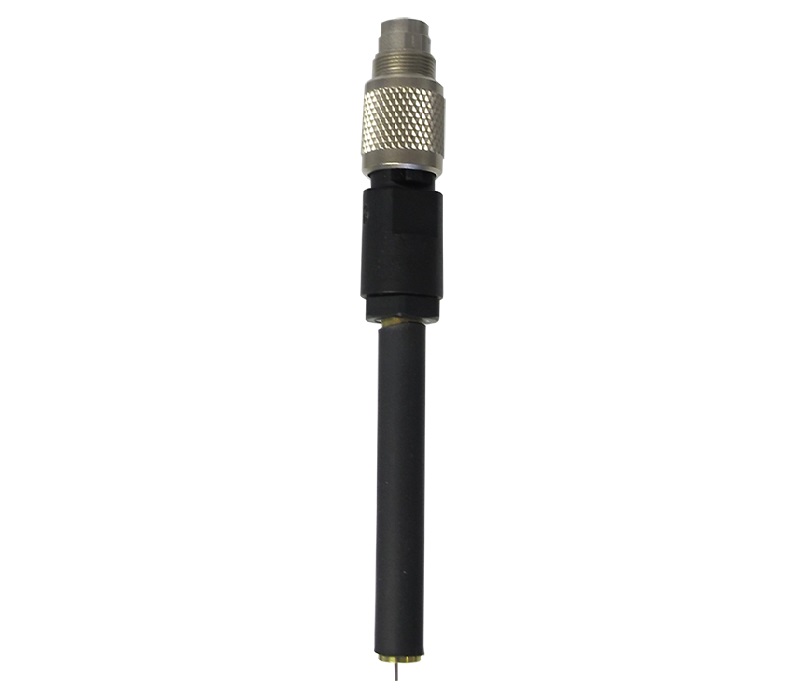

	224113 250 μm SKP PROBE Electrode Diameter: 250 µm Electrode Material: Tungsten (W) Product Number: 224113
	1109917 10 μm SKP PROBE Electrode Diameter: 10 µm Electrode Material: Tungsten (W) Product Number: 1109917
