Cells for VersaSCAN

Specifically engineered cells for various samples, including large flat samples, 32mm diameter mounted samples and non-standard samples, and VersaSCAN techniques, including DC-/AC-SCEM, Soft-probe SECM, LEIS, SVET, SKP, SDC, and OSP.

Highlights:

Accessories:

VSC-LCELL VersaSCAN L-Cell

VersaSCAN L-Cell is designed to accept large flat samples and
32mm diameter mounted samples for all VersaSCAN techniques.

Screws into optical table of VersaSCAN

Approximately 1 L in volume

Level adjustment mechanism

Accepts large flat samples and 32mm diameter mounted samples

Recommended for all techniques, particularly LEIS, SVET, SKP, SDC, OSP

Product Number: VSC-LCELL

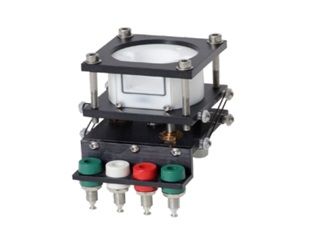

VSC-MLCELL VersaSCAN mL-Cell

VersaSCAN mL-Cell accepts 32 mm diameter mounted samples and non-standard samples for low- volume applications

Screws into optical table of VersaSCAN

Approximately 7 mL in volume

Level adjustment mechanism

Accepts a range of samples including 32mm diameter mounted
samples and non-standard samples

Specifically engineered for low-volume SECM application

Product Number: VSC-MLCELL
